Overview
For the roll-out of smart meter systems in Germany, MTG offers a portfo-lio of IT security products and services in line with BSI TR-03109.

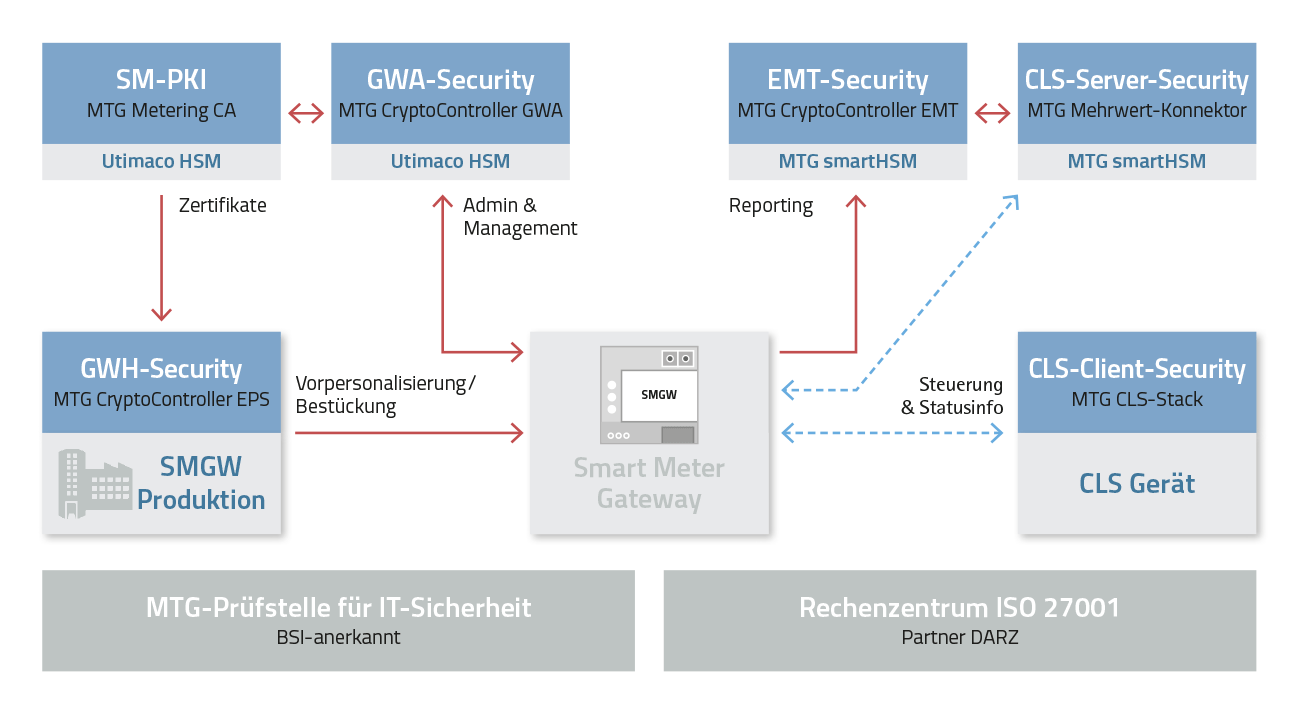

Overview of MTG security solutions for Smart Meter Gateway communication (© MTG AG)
These offers ensure the generation, management and storage of cryptographic keys and certificates required for secure communication between the smart meter gateway and the market participants. MTG thus covers the regulated process for all IT security-related areas, from the manufacturing and operation of smart meter gateways to the connectivity of devices for the control of the smart grid.
MTG Mehrwert-Konnektor (active EMT)

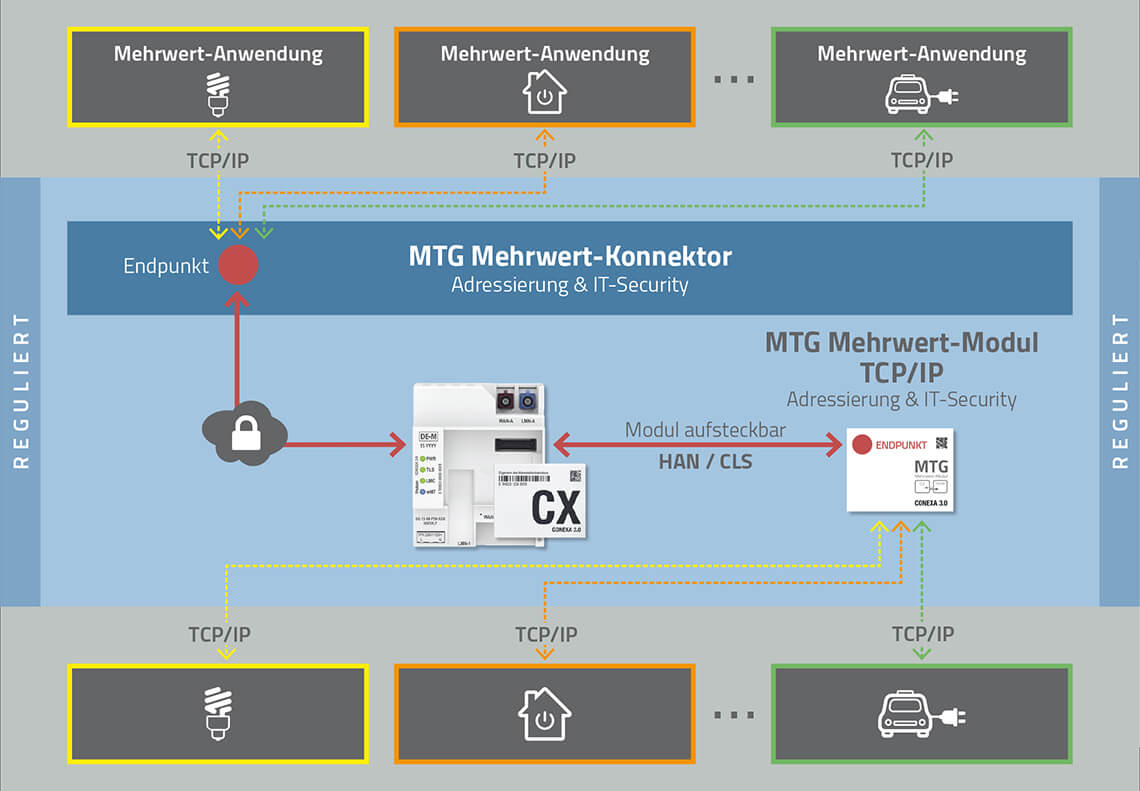

Easy connection of IoT devices to the application, a single permanent connection for different IoT devices (© MTG)
The MTG Mehrwert-Konnektor (eng. value-added connector / MWK) is a central security and communication system for energy suppliers who want to control various IoT devices in a network via the CLS channel (CLS - Controllable Local Systems). This enables utilities and other industries to offer value-added services successfully. IoT devices can thus be controlled via the CLS channel of the Smart Meter Gateway and the legal requirements of BSI-TR 03109 can be complied with. On server side the innovative software builds the BSI-TR-03109 compliant communication link to the SMGW and also offers the option of controlling any number of connections via the CLS channel.
MTG CLS Stack

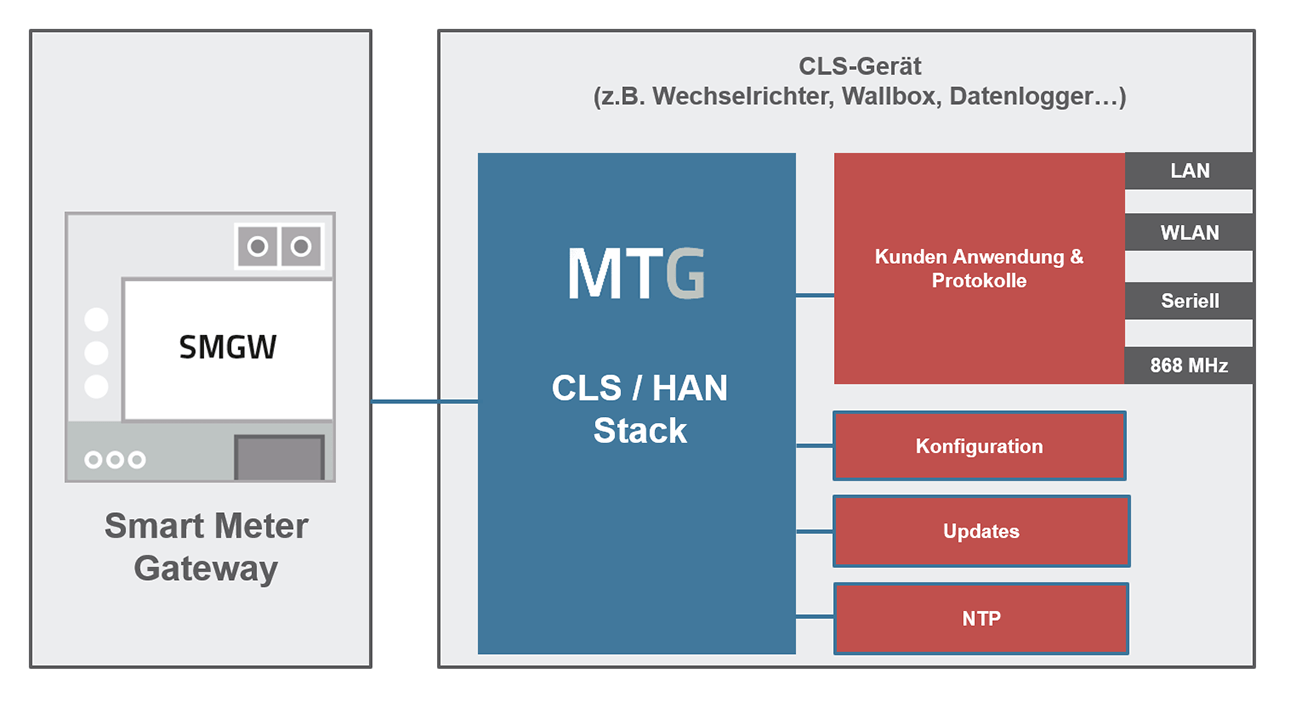

The MTG CLS Stack manages the BSI TR-03109 compliant connection of smart devices to the smart meter gateway (e.g., wall boxes, data loggers, RLM meters, LoRa Wan gateways etc.).
In case the MTG Mehrwert-Konnektor is used as active EMT (aEMT) on the server side, practically any TCP/IP-capable device can be connected to the SMGW. This allows the addressing and connection of any smart device to the application with minimal configuration effort. Even existing systems (e.g., wall boxes) can be easily connected to the SMGW infrastructure via TCP/IP.

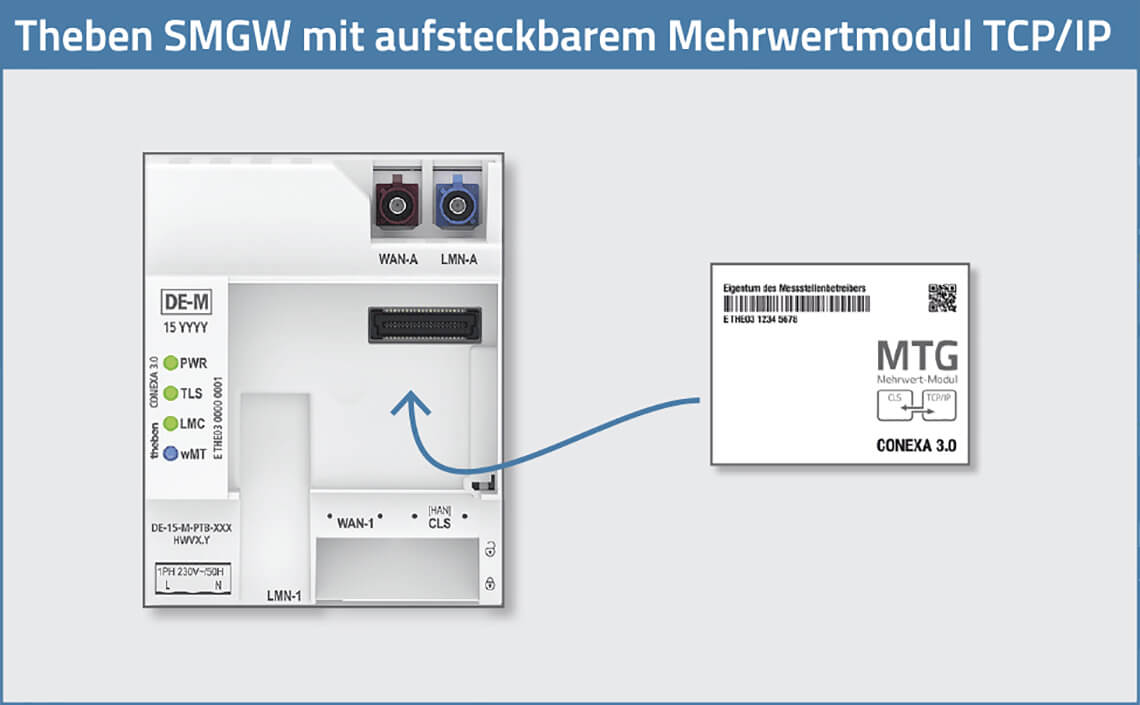

Theben Mehrwert-Module (© MTG)
Theben AG currently uses the MTG CLS stack for its “Mehrwert-Module” and the CSX 324 FNN control box. The “Mehrwert-Module” can be plugged onto the CONEXA 3.0 to save space. For the use in combination with other SMGW models, the “Mehrwert-Module” is mounted in a separate housing (2 TE) on the top-hat rail.
With numerous customers, a large number of TCP/IP-capable components have been quickly connected for test systems in a BSI-compliant way.
Already integrated devices
|
Device type |
Use Case |
Manufacturer - Model |
|---|---|---|
|
Battery storage |
Photovoltaics |
|
|
Data logger |
Remote meter reading |
|
|
Data logger |
Submetering |
|
|
Data logger |
Control & monitoring of solar systems |
|
|
Data logger |
Home energy management |
SMA - Coneva / Sunny Homemanager |
|
Data logger |
Remote meter reading |
|
|
Heating element |
Photovoltaics |
|
|
LoRa Wan Gateway |
Smart City / IoT |
|
|
LoRa Wan Gateway |
Smart City / IoT |
|
|
M-Bus level converter |
M-Bus meter reading |
Diehl - IZAR Center |
|
Power Inverter |
Photovoltaics |
KACO - Powador |
|
RLM counter |
Remote meter reading |
|
|
Wallbox |
Charging point management |
|
|
Wallbox |
Charging point management |
|
|
Wallbox |
Charging point management |
|
|
Wallbox |
Charging point management |
|
|
Wallbox |
Charging point management |
|
|
Wallbox |
Charging point management |
|
|
Wallbox |
Charging point management |
|
MTG Metering CA (MCA)
MTG Metering-CA is a PKI system designed to create and manage certificates for the German smart meter roll-out. It meets the technical requirements of the BSI TR-03109-04, BSI TR-3145, as well as the certificate policy of the smart metering PKI. The MTG Metering CA is used by SMGW manufacturers, smart meter gateway administrators and in market communication.
The MTG Metering-CA is a leading Smart Meter Sub-CA product and has already been installed several times in GWA data centers which have been successfully certified according to DIN ISO 27001. MTG Metering-CA customers benefit from the multi-client capability and very high scalability of our product.
MTG Corporate PKI
With the MTG Corporate PKI, energy providers can optimally implement their certificate management in the company for the various use cases. The issued certificates can be used, for example, for the communication infrastructure (e.g. routers, switches, firewalls, VPN...), the connection of mobile or home workstations and for mobile device management (smartphones). With the support of our premium partner Secardeo, automated certificate management for Microsoft Windows infrastructures is possible with MTG Corporate PKI.
MTG CryptoContoller (MCC)
MTG CryptoController is required for Smart Meter Gateway communications in accordance with BSI TR-03109. To receive and read encrypted data, “External Market Participants” (“EMT”) and Gateway Administrators must authenticate at the Smart Meter Gateway by using a secure channel.
By using the MTG Metering-CA and the MTG CryptoController, manufacturers of Smart Meter Gateways are able to equip the hardware very quickly and flexibly with the required initial certificates. Furthermore, the own Firmware can be protected with certificates to ensure that the SMGW can be operated only with original manufacturer software. This system is in operation at leading SMGW manufacturers.
Evaluation Facility for IT Security
Our BSI-approved Evaluation Facility for IT security will assist you with all questions regarding the implementation of the BSI TR-03109 policies for the smart metering in Germany.
